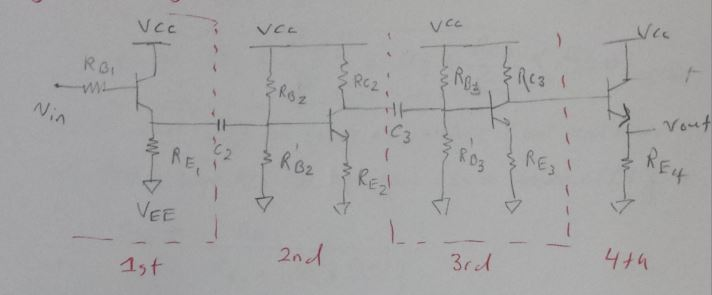

2 Transistor Amplifier Circuit Diagram Transistor Amplifier Circuits Unit 1 - Introduction to Transistor Amplifiers 2 NEW TERMS AND WORDS Multistage - an amplifier circuit that uses more than one active component (transistor). active component - a circuit component that controls gain or directs current flow. gain - the amount by which an amplifier increases signal voltage, current, or power; expressed as K. Webb ECE 322 4 BJT Amplifier Circuits Recall the two functional pieces of a BJT amplifier: Bias network Sets the DC operating point of the transistor Ensures the BJT remains in the forward-active region Signal path Biasing. Network Signal path Sets the gain of the amplifier circuit Significant overlap between the two parts
Transistor amplifiers are circuits that are used to amplify weak audio, DC, or AC signals, and have a wide range of applications. When amplifying AC signals using a transistor amplifier, both voltage and current can be amplified simultaneously. There are three configurations of transistor amplifiers: Common-base amplifiers. Common-emitter
PDF Physics 222 Circuit Diagram
The choice of the transistor depends on the frequency range and the power level. Here, we are making a small signal AF amplifier and can use any of the hundreds of transistors. So let's use the well-known BC337. How the circuit works. Our design begins with a look inside the transistor itself. Students will learn to design, assembly and determine the behavior of electronic devices and circuits that use resistors, capacitors, inductors, diodes, transistors and operational amplifiers. Successful completion of this lab will help students to demonstrate (1) understanding of electrical circuits in practical applications, (2) ability to
The Base of the transistor used in a common emitter amplifier is biased using two resistors as a potential divider network. This type of biasing arrangement is commonly used in the design of bipolar transistor amplifier circuits and greatly reduces the effects of varying Beta, ( ฮฒ) by holding the Base bias at a constant steady voltage. This
Emitter Transistor Amplifier Design Circuit Diagram
An amplifier circuit which is purely based on a transistor or transistors is called a transistor amplifier. Transistors amplifiers are commonly used in applications like RF (radio frequency), audio, OFC (optic fibre communication) etc. Anyway the most common application we see in our day to day life is the usage of transistor as an audio amplifier. In this case if we applied the input signal of 0 degree phase then output will be obesrved to be Phase of 180 degree. The common-emitter amplifier design is called an inverting amplifier. Examples. Q1. The output resistance of a common base transistor amplifier is 100 kฮฉ, while the input resistance is 10 ฮฉ. One kฮฉ is the collector load.
